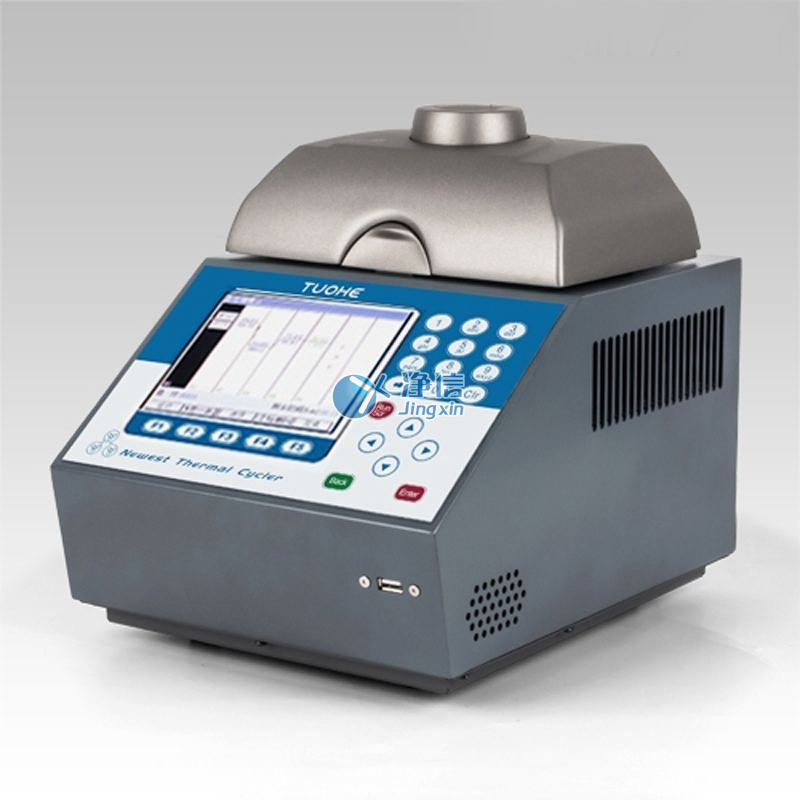

model：thg-96g (gradient)
brand：jingxin
specifications ：set
introduction：gradient amplification pcr detection and analysis instrument is a kind of equipment that uses pcr technology to amplify specific dna.
gradient amplification pcr detection analyzer:
the pcr amplifier is an instrument that uses pcr (polymerase chain reaction, polymerase chain reaction) technology to amplify specific dna. it is widely used in medical and biological laboratories, for example, it is used to determine whether the sample will show a genetic disease map, the diagnosis of infectious diseases, gene replication, and paternity testing.
guide to the use of gradient amplification pcr detection analyzer:
1. connect the power supply, turn on the power switch, the indicator light on the lower right side of the display will light up, about 20 seconds later, a login dialog box appears, click the login button to enter the system homepage.
2. press the file management icon to enter the file management page.
3. press the new icon in the lower left corner, enter the file name in the pop-up dialog box, and click the ok button to pop up the new program dialog box.
4. click the add button in the lower left corner, enter the temperature required in step 1, click enter, and enter 5 (heat preservation time, minutes: seconds)". the first step is set up. press the lower left corner "confirm and enter the next step" to start enter the next setting. until the program setting is completed, press "confirm and return, press save and run, the program starts to run.
5. when the program is over, turn off the power.
technical parameter:
main parameters | parameter range | |||
model | thg96g (gradient type) | thg96 (standard type) | thg48 (standard type) | |
temperature rise and fall technology | semiconductor refrigeration | |||
lcd | 5.7-inch true color screen, curve graph display program | |||
u disk function | unlimited download of programs via u disk | |||
communication interface | usb2.0*1 | |||
language | support chinese and english | |||
sample stage capacity | 0.2ml*96 hole | 0.2ml*48 hole | ||
sample stage temperature range | 0℃-100℃ | |||
maximum heating rate | 5℃/second | |||
maximum cooling rate | 4.5℃/second | |||
temperature uniformity of sample stage | ≤±0.2℃ | |||
temperature accuracy of sample stage | ≤±0.2℃ | |||
temperature display resolution | 0.1℃ | |||
temperature control method | analog tube sample stage | |||
variable temperature speed adjustable | have | |||
gradient temperature accuracy | ≤±0.2℃ | none | ||
gradient temperature uniformity | ≤±0.2℃ | none | ||
gradient range | 30℃-100℃ | none | ||
temperature range | 0-30℃ | none | ||
number of program storage | the instrument can store 120 programs, and can download unlimited programs via u disk | |||
maximum number of steps | 40, can do multiple nested loops | |||
maximum number of cycles | 100 standard loops (up to 60,000 nested loops) | |||
time increase/decrease | 1-120 seconds, can do long pcr experiment | |||
temperature increase/decrease | 0.1-10.0℃, can do touchdown pcr experiment | |||
自动暂停auto pause | have | |||
power failure protection | have | |||
heat preservation | infinite holding time | |||
run time display | have | |||
real time clock | have | |||
hot lid temperature | 30℃-110℃ adjustable | |||
heat cover height | stepless free adjustment, adapt to different pcr tubes | |||
hot lid repressurization technology | two levels of adjustment, no matter how many sample tubes are running during the experiment, the pressure of the sample tube can be kept constant | |||
the hot lid closes automatically | when the set temperature of the sample stage is lower than 30℃ or the program ends, it will automatically shut down | |||
input power, power | universal power supply （220vac/47-65hz)， 200w-600w | |||
size, net weight | 303mm*243mm*273mm，9kg | |||
more sample table capacity | 0.2ml*96 hole 0.5ml*77 hole, 0.2ml*48hole 0.5ml*48 hole, 0.2ml*108 hole 0.5ml*88 | |||
