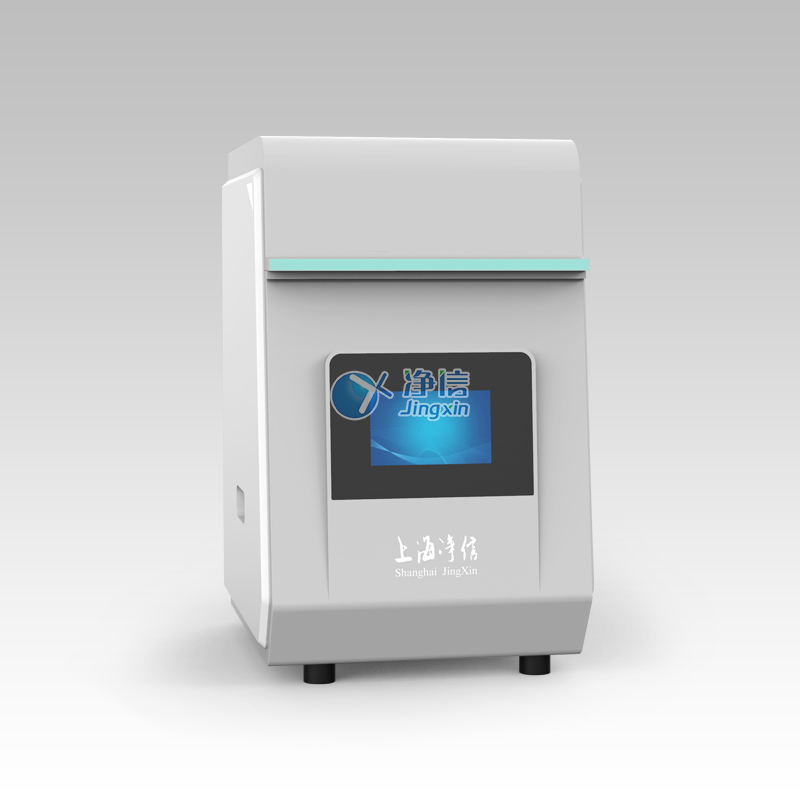

high-speed grinding homogenizer-192

model:jxfstprp-192

brand:shanghai jingxin

specifications :set

introduction:put the sample and grinding ball into the high-speed grinding homogenizer,mixing and cell wall breaking of samples can be completed within a short period of time.

the jxfstprp® tissue grinder (patented product, counterfeit must be investigated! zl2019301641764) of shanghai jingxin® is a special, fast, high-efficiency, multi-tube consistent system. the automatic sample rapid grinder, also known as the high-speed grinding homogenizer, can convert the original dna, rna and protein of any source (including soil, plant and animal tissues/organs, bacteria, yeast, fungi, spores, ancient biological specimens, etc.) extract and purify.

put the sample and grinding ball into the grinding machine (with grinding jar or centrifuge tube/adapter), under the action of high frequency swing, the grinding ball collides and rubs back and forth in the grinding machine at high speed, and the sample can be completed in a very short time grinding, crushing, mixing and cell wall breaking.

application:

1. suitable for grinding and crushing of various plant tissues including roots, stems, leaves, flowers, fruits, seeds and other samples;

2. suitable for grinding and crushing various animal tissues including brain, heart, lung, stomach, liver, thymus, kidney, intestine, lymph node, muscle, bone and other samples;

3. suitable for grinding and crushing of fungi and bacteria including yeast, escherichia coli and other samples;

4. suitable for grinding and crushing of food and medicine;

5. suitable for grinding and crushing of volatile samples including coal, oil shale, wax products, etc.;

6. suitable for grinding and crushing of soil, plastic, polymer including pe, ps, textile, resin and other samples.

7. it is suitable for the homogenization and grinding of various vegetables, fruits, meat, fish and shrimps, tea, nuts and other samples to improve the extraction efficiency of drug residues.

features:

1. good stability: the vertical oscillation method is adopted, the grinding is more sufficient, and the stability is better;

2. high efficiency and high throughput: complete the grinding of 2×24, 2×48, 2×96 and various specifications and larger capacity samples within 1 minute;

3. good repeatability: the same tissue sample is set to the same procedure to obtain the same grinding effect;

4. easy to operate: built-in program controller, which can set parameters such as grinding time and rotor vibration frequency;

5. high safety: with safety cover and safety lock;

6. no cross-contamination: it is in a fully enclosed state during the grinding process to avoid cross-contamination;

7. low noise: during the operation of the instrument, the noise is less than 45db, which will not interfere with other experiments or instruments.

main specifications:

main parameters

parameters range

application

animal and plant tissue homogenization, grinding, cell crushing, material dispersion, rapid sample preparation in different fields, and improving extraction efficiency in the fields of pesticide residues and animal residues.

compatible sample size

192-bit 2ml deep hole grinding tube, 96-well plate 2ml standard tube, 48-bit 5ml grinding tube, 32-bit (7-15) ml grinding tube, 16-bit 50ml; 8-bit 100ml, and 4*25ml (steel can), 2 *50ml (steel can)

feed /discharge size

there is no requirement for feeding, according to the size of the adapter; the discharge size of the discharge is ~5μm

homogenization speed

0-4900rpm

grinding ball diameter/material

0.1-30mm / stainless steel, chrome steel, zirconia, tungsten carbide, quartz sand

grinding method

wet grinding, dry grinding, cryogenic grinding

adaptor

it is versatile and can be applied to a variety of similar instruments

operation mode

three-stage operation can be set

touch screen display

there are touch buttons such as start, stop, pause, door open/close, system setting, parameter setting, parameter selection, etc.

cycle times can be set

1-20 cycles

can set cycle gap time

1-600s adjustable

working time

0-9999s , user can set

acceleration/deceleration

maximum speed in 2 seconds / minimum speed in 2 seconds

noise level

45db

electronic lock device

double electronic locking device, suction up to 60 kg

security system

with lid open stop function
