model：cry-3
brand：jingxin
specifications ：

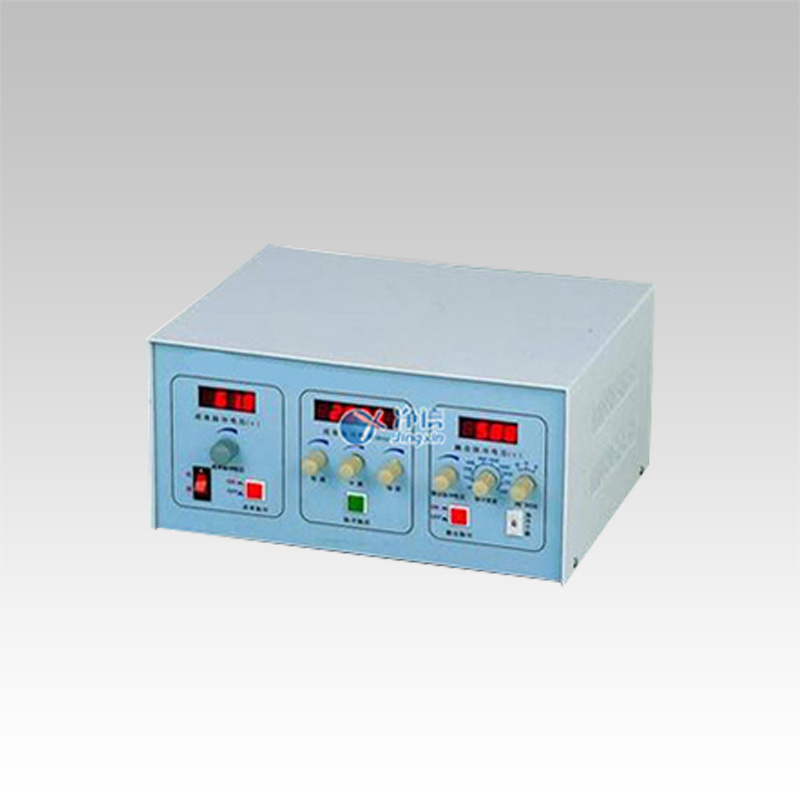

introduction：this instrument is suitable for cell hybridization and cell fusion, and can directly observe cell clusters and fusion phenomena under an inverted microscope.
product description:
this instrument is suitable for cell hybridization and cell fusion, and can directly observe cell clusters and fusion phenomena under an inverted microscope. it can be used for research in microbiology, animal medicine, bioengineering, etc. compared with traditional chemical fusion methods, it has the characteristics of non-toxicity to cells, high fusion efficiency, convenience and speed. various flat electrodes, needle electrodes and nickel wire electrodes are available for purchase.
operating environment:
1. ambient temperature: -10℃—40℃
2. relative humidity: ≤70%
3. applicable power supply: voltage 220v/110v (±10%), 50hz/60 hz (±2%).
technical parameter:
main parameters | parameter range |
ac electric field parameters: | *square wave burst voltage: peak-to-peak value 0-48v (0-±24v), continuously adjustable. |
| *square wave string pulse frequency: 35khz-3mhzsk adjustable |
dc electric field parameters: | 6000v/cm.* square wave fusion pulse voltage: 0-600v continuously adjustable (electrode spacing) 1.0mm, the field strength can reach 6000v/cm. |
| *square wave fusion pulse amplitude: 1us-5ms divided into ten levels, optional |
microscope slide electrodes and rod electrodes are randomly equipped: | 20 groups each with a pole distance of 1mm, 1.5mm, and 2mm, and 20 groups of platinum wire patch electrodes. |
display mode: | digital display, microcomputer control |
pulse form: | exponential decay |
net weight: | 9.22kg |
packing size: | 450*370*290mm |
basic configuration:
ø host: 1 set
ø fiber slide electrode, rod electrode
ø 20 groups each with a pole distance of 1mm, 1.5mm, and 2mm
ø 20 groups of platinum wire patch electrodes
