thermostatic metal bath refrigeration type

model:jx-20

brand:jingxin

specifications :set

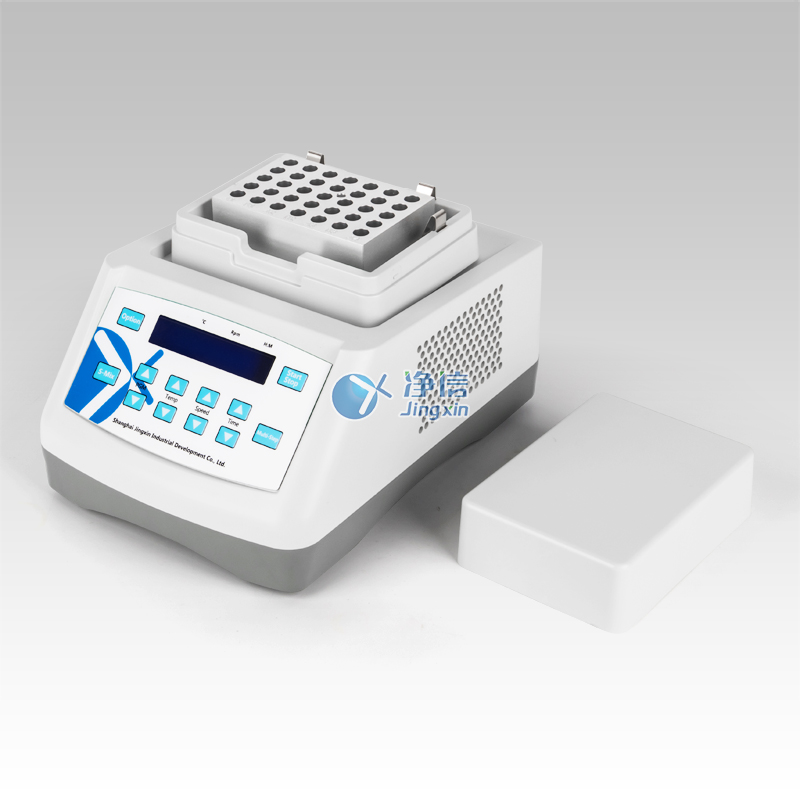

introduction:jx-20 is a high-performance dry-type thermostat that uses microcomputer control and semiconductor refrigeration technology. it uses high-purity aluminum as a heat transfer medium to replace the traditional water bath device.

product description:

jx-20 is a high-performance dry-type thermostat that uses microcomputer control and semiconductor refrigeration technology. it uses high-purity aluminum as a heat transfer medium to replace the traditional water bath device. it has exquisite appearance, convenient use, high precision, and small size. , features such as large temperature control range.

using high-quality semiconductor refrigeration film and switching power supply module to ensure long-term stable and reliable operation. it can be widely used in sample preservation and reaction, dna amplification and electrophoresis pre-denaturation, serum coagulation, etc.


features:

◆real-time temperature display, time countdown display;

◆automatic fault detection and buzzer alarm function;

◆temperature deviation calibration function;

◆built-in over-temperature protection device;

◆convenient module replacement, easy to clean and disinfect;

◆exquisite appearance, blue lcd display real-time parameter information;

◆temperature deviation calibration function, optional power-off automatic recovery function, automatic operation function after power-on, improve work efficiency;

◆intelligent algorithm ensures the temperature control accuracy of ≤±0.3℃ in the whole range, effectively reducing the experimental error;

◆multiple safety protection to ensure long-term operation stability and safety under unattended conditions, in line with ce standards;

◆support module classification custom calibration function;

technical parameter:

main parameters

parameter range

temperature setting range

0℃~100℃

temperature control range

30℃~100℃

below room temperature

time setting

1min~99h59min/∞

temperature control accuracy

≤±0.3℃*

display accuracy

0.1℃

temperature uniformity

≤±0.3℃*

heating time

≤10 minutes(25℃-100℃)*

cooling time 1

 ≤10 minutes(100℃- 25℃)*

cooling time 2

(room temperature drops to 30℃ below room temperature)*

store at 4℃ after running

support

multi-point operation

support (5 points)

multi-point loop operation

support (can be cycled 99 times)

automatic preheating

support

automatically run on startup

support

automatic recovery after power failure

support

sample capacity

see module selection table

input power

150w

voltage

ac110~220v/50-60hz

fuse

250v  3a  ф5×20

dimensions(mm)

260x195x150 mm

weight

4.5kg

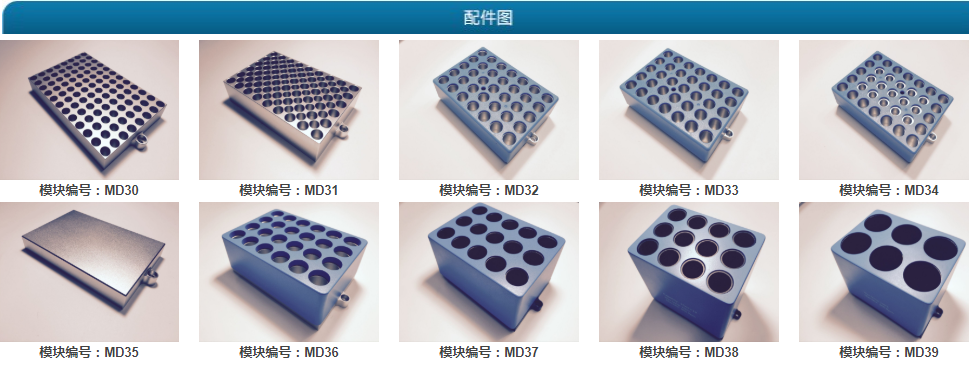

optional modules:

model

test tube diameter

test tube number

md30

0.2ml ((standard plate)

96

md31

0.5ml (centrifuge tube)

54

md32

1.5ml (centrifuge tube)

35

md33

2.0ml (centrifuge tube)

35

md34

0.5ml 1.5ml (centrifuge tube)

15 20

md35

0.2ml (enzyme plate)

96

md36

5ml

24

md37

10ml

15

md38

15ml

12

md39

50ml

6

customized module

sample tube specifications provided by the customer

——

optional accessories:
