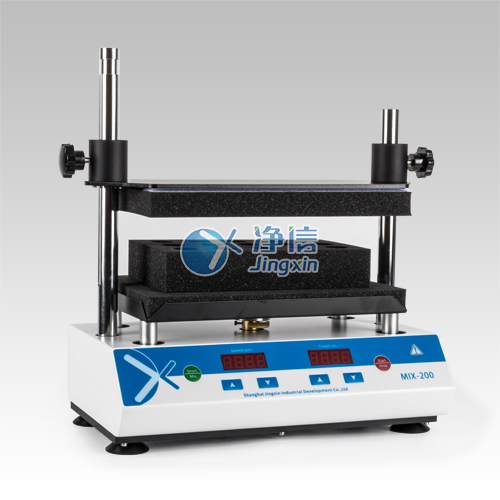

multi-tube vortex oscillator

model:mix-200

brand:jingxin

specifications :set

introduction:mix-200 multi-tube vortex oscillator adopts dc brushless motor and microcomputer control technology. the unique knob operation mode is simple and easy to use. it is suitable for the fields of biotechnology, microbiology and medical analysis.

product description:

mix-200 multi-tube vortex oscillator adopts dc brushless motor and microcomputer control technology. the unique knob operation mode is simple and easy to use. by changing different test tube fixing sponges, it can mix and cultivate various commonly used test tubes, and can mix and process 50 samples at a time. it is suitable for the fields of biotechnology, microbiology and medical analysis.


features:

◆button operation mode, simple and easy to use;

◆ the timing time can be set arbitrarily within the range of 1min ~ 99h59min, and the prompt sound will be emitted automatically after the operation is over;

◆ a variety of sponge test tube racks are available for a wide range of uses;

◆ soft start, uniform acceleration, effectively avoiding sample splashing;

◆ driven by dc brushless motor, precise speed, long life and maintenance-free;

◆it can process 50 test samples at a time, making the experiment efficient and fast;

◆ simple operation panel, precise microprocessor control, led real-time display of speed and time;

◆ humanized program design, built-in jog and timing operation modes;


product parameters:

main parameters

parameter range

range of rotation

500~2800rpm

time setting

1min ~ 99h59min

amplitude

4mm horizontal rotation

load

5kg

input power

100w

dimensions

240*420*430mm

 input voltage

ac100-230v 1.5a

weight

14kg


optional accessories:

model

test tube rack specifications

applicable test tube specifications (outer diameter)

mix-200-t10

50x¢10mm

9~¢10mm

mix-200-t12

50x¢12mm

11~¢13mm

mix-200-t15

50x¢15mm

14~¢17mm

mix-200-t20

50x¢20mm

18~¢21mm

mix-200-t25

15x¢25mm

24~¢27mm

mix-200-t29

15x¢29mm

28~¢32mm
