model：jxdc-10
brand：jingxin
specifications ：set
introduction：jxdc-10 nitrogen purging instrument adopts microcomputer and pid fuzzy control technology,
product description:

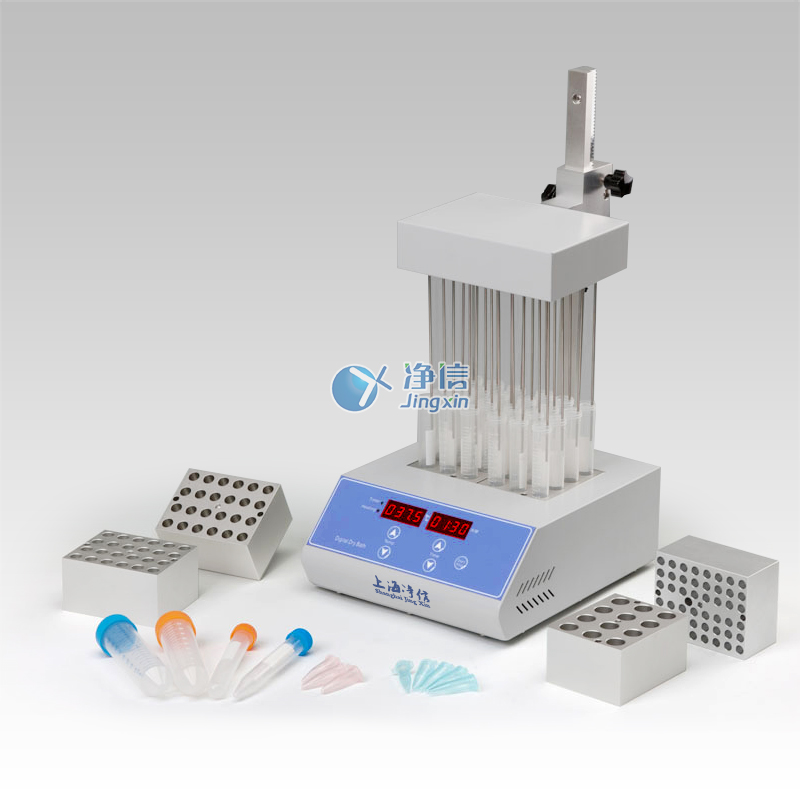

jxdc-10 nitrogen purging instrument adopts microcomputer and pid fuzzy control technology, and uses high-purity aluminum material as the heat transfer medium to replace the traditional water bath device. it has the characteristics of convenient use, large temperature control range, and high precision. its working principle is to blow nitrogen or air to the surface of the heated sample quickly, continuously and controllably, and set the heating temperature according to the evaporation speed and boiling point of the concentrated solvent to achieve rapid concentration of a large number of samples.
features:
◆ the blowpipes are independent of each other and will not cause cross-contamination;
◆ each air needle channel can be used in combination or alone;
◆ the system has high temperature control accuracy, wide temperature control range, temperature numerical control display, and temperature calibration is convenient;
◆ the product has beautiful appearance, simple operation, safe and reliable use;
:
main parameters | parameter range |
temperature range | 5℃~150℃ |
temperature control accuracy | ≤±0.5℃ |
temperature uniformity | ≤±0.5℃（@100℃） |
heating time | ≤30min（40℃ to 150℃） |
gas pressure | 0.05mpa |
air needle length | 150mm |
fuse | 250v 3a φ5×20 |
dimensions | 260x220x475（mm) |
timing | 99h59min |
display accuracy | 0.1℃ |
temperature uniformity | ≤±0.1℃（@150℃） |
lifting stroke | 200mm |
gas flow | 15l/min |
number of modules | 1 |
power | 200w |
weight | 7.0kg |
optional accessories:
model | test tube diameter | test tube number |
md03 | 10mm（47mm）hole depth | 24 |
md04 | 12mm（47mm）hole depth | 24 |
md05 | 13mm（47mm）hole depth | 24 |
md06 | 15mm（47mm）hole depth | 16 |
md07 | 16mm（47mm）hole depth | 16 |
md08 | 19mm（47mm）hole depth | 12 |
md09 | 20mm（47mm）hole depth | 12 |
md10 | 26mm（47mm）hole depth | 8 |
md11 | 28mm（47mm）hole depth | 4 |
md12 | 40mm（47mm）hole depth | 3 |
md15 | 1.5ml (centrifuge tube) | 24 |
md16 | 2.0ml (centrifuge tube) | 24 |
定制模块 custom module | 由客户提供样品管规格 sample tube specifications provided by the customer | —— |
