oscillator special for microplate

model:wkb-100-4

brand:jingxin

specifications :set

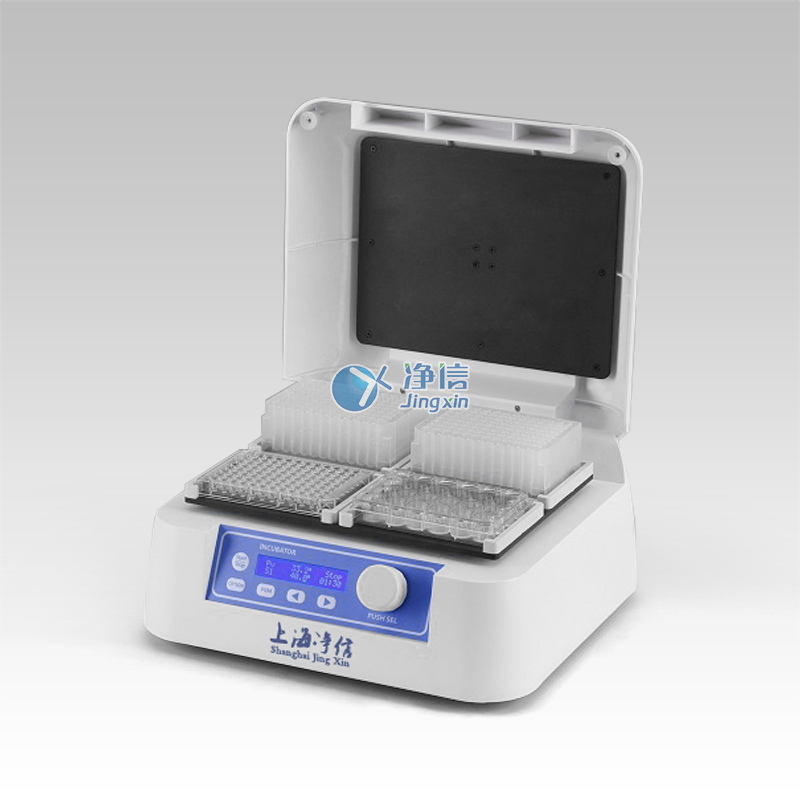

introduction:wkb-100-4 special constant temperature oscillator for microplates is a multi-purpose constant temperature oscillator that combines a brushless dc motor and pid intelligent temperature control technology.

product description:

wkb-100-4 special constant temperature oscillator for microplates is a multi-purpose constant temperature oscillator that combines a brushless dc motor and pid intelligent temperature control technology. its pid fuzzy control technology can accurately ensure the temperature control accuracy, and automatically adjust the heating rate to save waiting time. wkb-100-4 perfectly combines the two functions of constant temperature and oscillation, which greatly shortens the time of experimental operation. it is an ideal automation tool for the reaction process of sample incubation, catalysis, mixing and storage.


features:

◆ simple and easy-to-use man-machine operation interface, real-time display of all operating information and setting information, convenient for users to observe the operating status of the equipment.

◆ it can process 4 elisa plates or deep well plates at a time;

◆ adopt hot cover heating technology;

◆ support automatic preheating function;

◆ support automatic recovery function after power failure;

◆ comes with temperature calibration function;

◆using dc brushless motor, low noise, low interference and maintenance-free;


technical parameter:

main parameters

parameter range

temperature setting range

0℃~80℃

temperature control range

room temperature 5℃~80℃

time setting

1min~99h59min/∞

temperature control accuracy

≤±0.5℃*

display accuracy

0.1℃

temperature uniformity

≤±0.5℃*

heating time

≤10 minutes (25℃ to 80℃)*

automatic preheating

support

range of rotation

300~1350rpm

horizontal amplitude

3mm

sample capacity

4 microtiter plates or deep well plates

automatic recovery after power failure

support

fuse

250v 3a  ф5x20

input power

300w

voltage

ac220v/50-60hz

dimensions (mm)

340×320×200mm

weight

9.5kg
