model：wkb-200-4
brand：jingxin
specifications ：set

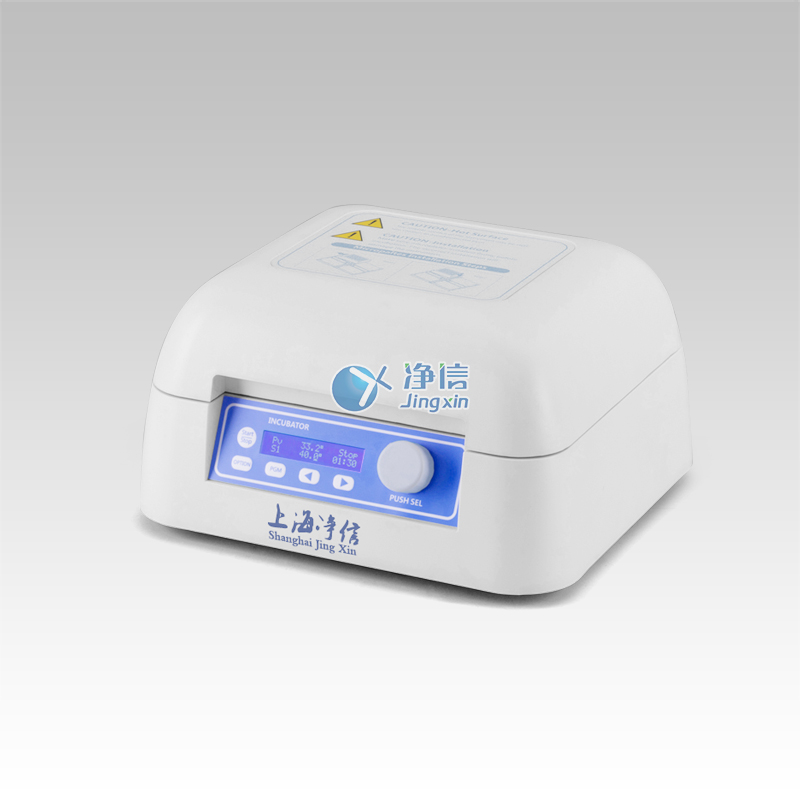

introduction：the wkb-200-4 microplate incubator is a special thermostat that combines film heating and pid intelligent temperature control technology.
product description:
the wkb-200-4 microplate incubator is a special thermostat that combines film heating and pid intelligent temperature control technology. its pid fuzzy control technology can accurately ensure the temperature control accuracy, and automatically adjust the heating rate to save waiting time. wkb-200-4 greatly shortens the experimental operation time, and is an ideal automation tool for sample incubation, catalysis and other reaction processes.
features:
◆simple and easy-to-use man-machine operation interface, real-time display of all operating information and setting information, convenient for users to observe the operating status of the equipment.
◆it can process 4 elisa plates or deep well plates at a time;
◆using hot cover heating technology;
◆support automatic preheating function;
◆support automatic recovery function after power failure;
◆with temperature calibration function;
◆built-in software and hardware dual over-temperature protection device, more reliable to use
technical parameter:
main parameters | parameter range |
temperature setting range | 0℃~80℃ |
time setting | 1min~99h59min/∞ |
display accuracy | 0.1℃ |
heating time | ≤10 minutes (25°c to 80°c)* |
automatic recovery after power failure | support |
input power | 300w |
fuse | 250v 3a ф5x20 |
weight | 6.5kg |
temperature control range | room temperature 5℃~80℃ |
temperature control accuracy | ≤±0.5℃* |
temperature uniformity | ≤±0.5℃* |
automatic preheating | support |
sample capacity | 4 microtiter plates or deep well plates |
voltage | ac220v/50-60hz |
dimensions | 340x320*200mm |
