model：biot-100
brand：jingxin
specifications ：set

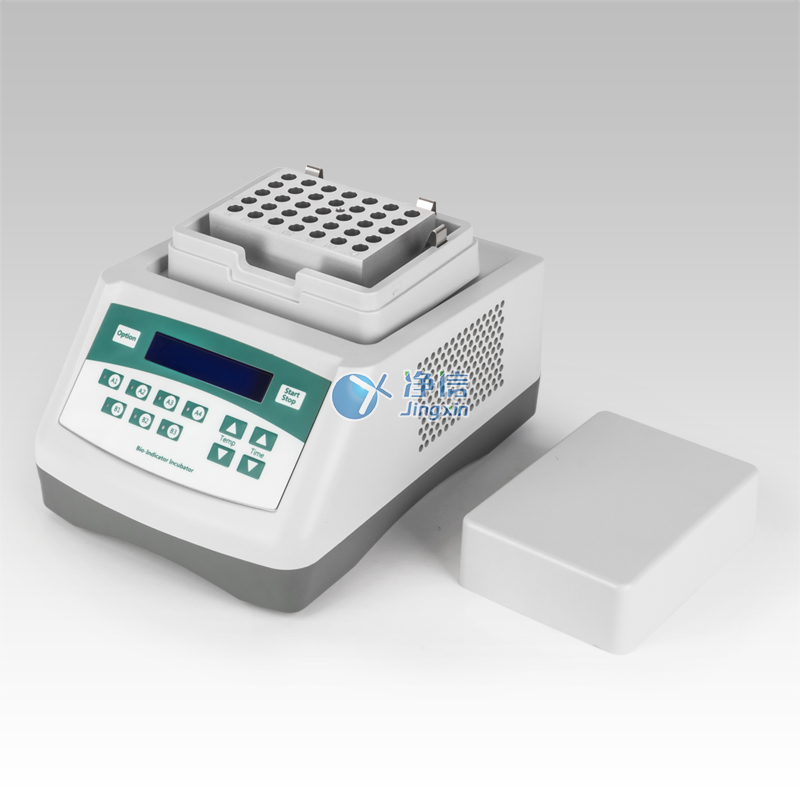

introduction：the biot-100 biological indicator incubator is a sample constant temperature incubation device designed based on film heating and pid automatic temperature control technology.
product description:
the biot-100 biological indicator incubator is a sample constant temperature incubation device designed based on film heating and pid automatic temperature control technology. the flexible random independent timing function effectively improves the work efficiency and is an ideal equipment for the constant temperature culture reaction process of various biological indicators.
on the basis of the current jxmini-90 incubator, biot-100 achieves a larger sample capacity and can count down 7 groups of samples at the same time to meet the needs of customers who need to use this type of testing and training frequently.
this product can also be used to replace dry-type thermostats (thermostatable metal bath), and the module can be used in common with jx-10.
features:
◆simple and easy-to-use man-machine operation interface, real-time display of all operating information and setting information, convenient for users to observe the operating status of the equipment;
◆high temperature control accuracy;
◆realize the precise timing function of 99 hours and 59 minutes or 1 minute;
◆up to 7 groups of samples can be counted down independently at the same time;
◆support automatic preheating function;
◆support automatic recovery function after power failure;
◆support automatic operation function after booting;
◆temperature calibration function;
◆built-in software and hardware dual over-temperature protection device, which is more reliable to use;
performance:
main parameters | parameter range |
temperature control range | room temperature 5℃~100℃ |
time setting range | 1min ～ 99h59min/∞ |
temperature control accuracy | ≤±0.3℃* |
display accuracy | 0.1℃ |
temperature setting range | 0℃～100℃ |
temperature uniformity | ≤±0.3℃* |
heating time | ≤12min (从25℃ ~ 100℃)* ≤12min (from 25℃ to 100℃)* |
automatically run on startup | support |
automatic preheating | support |
sample size | see module selection table |
automatic recovery after power failure | support |
voltage | ac220v/50-60hz |
input power | 150w |
fuse | 150w |
dimensions（mm） | 260x195x150mm |
weight | 2.5kg |
optional accessories:
model | test tube diameter | test tube number |
jx020441 | 35x ф9mm | only for biot-100 |
jx020442 | 35x ф10mm | only for biot-100 |
jx020443 | 28xф12mm | only for biot-100，not removable |
