model：ndj-5s
brand：jingxin
specifications ：taiwan
introduction：
overview:

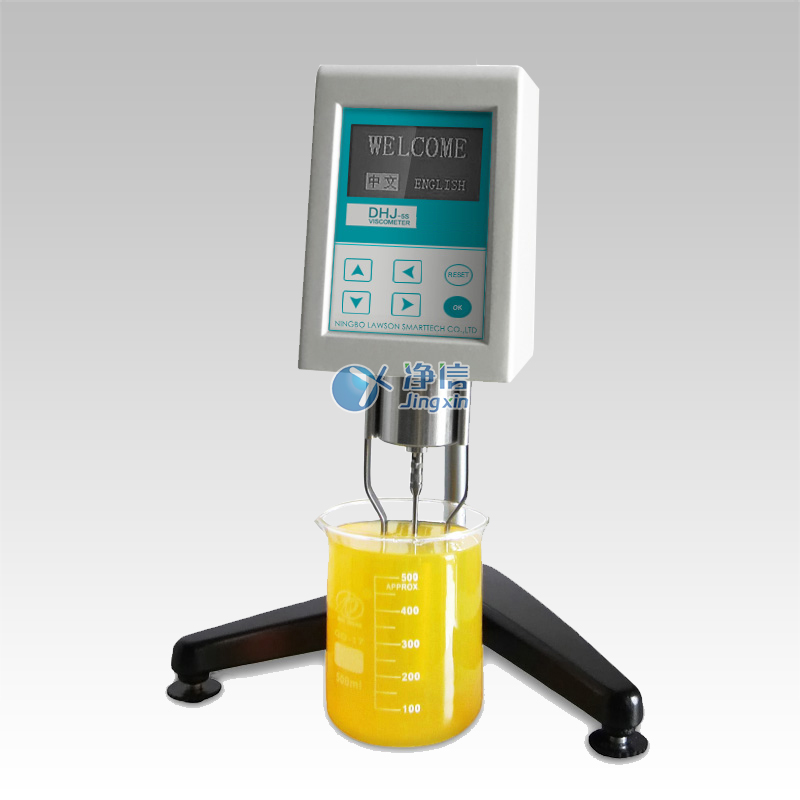

ndj-5s digital display viscometer is an upgraded product of our company's rotational viscometer. this instrument adopts advanced mechanical design technology, manufacturing technology and microcomputer control technology, and the data is collected correctly; the display adopts a blue backlight, high-brightness lcd display, and the data is displayed clearly.
this instrument has the characteristics of high measurement sensitivity, reliable test results, convenient use and operation, and beautiful appearance. it is an instrument used to measure the absolute viscosity of newtonian liquids and the apparent viscosity of non-newtonian liquids. it can be widely used in grease and paint. viscosity measurement of various objects such as, plastics, drugs, accessories, coatings, detergents, etc.
technical parameter:
main parameters | parameter range |
model | ndj-5s |
measuring range | 1 ~1×105mpa.s |
rotor specifications | 0.1mpa.s no. 1-no. 4 rotor, optional no. 0 rotor can measure low viscosity to 0.1mpa.s |
rotor speed | 6、12、30、60 rpm |
automatic file | can automatically select the appropriate rotor number and speed |
operation interface selection | chinese english |
stable reading cursor | when the vertical bar and square cursor is full, the reading is basically stable |
measurement accuracy | ±2%(newtonian liquid) |
power supply | comminicate220v±10% 50hz±10% |
working environment | temperature 5oc~35oc, relative humidity not more than 80% |
dimensions | 370×325×280mm |
net weight | 6.8㎏ |
