model：sz-iid
brand：jingxin
specifications ：set

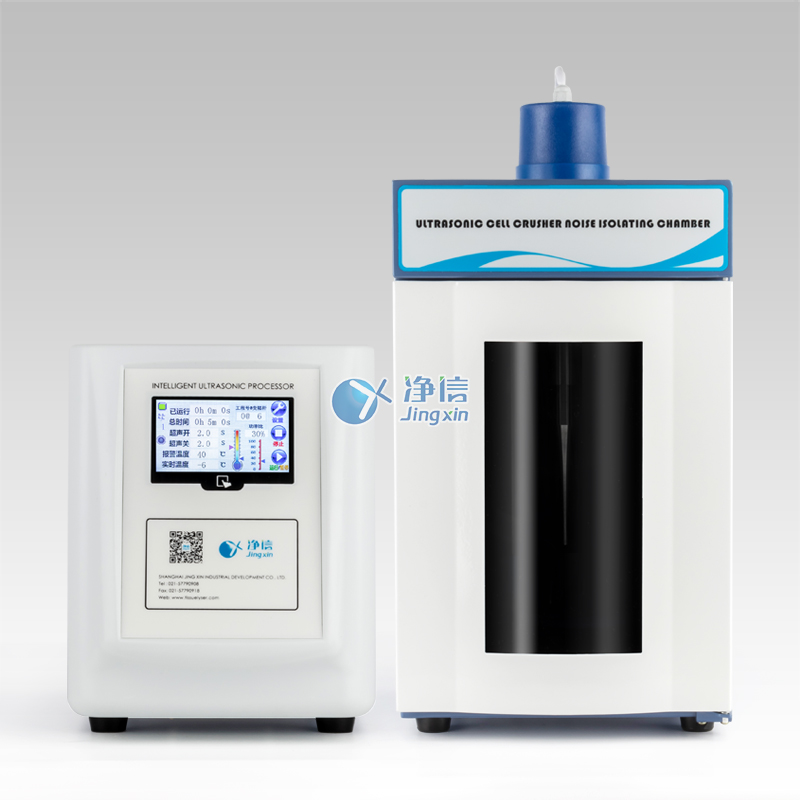

introduction：ultrasonic cell crusher is a multi-functional and multi-purpose instrument that uses strong ultrasound to produce cavitation effect in liquids and ultrasonically treat substances.
features:
1. a new generation of products, complete functions, beautiful appearance, reliable performance, large-screen lcd display
2. high degree of intelligence, centralized control by the central computer, ultrasonic time and power can be set arbitrarily
3. sample temperature detection display, frequency microcomputer tracking, automatic fault alarm
4. a matching export hot-selling soundproof box can reduce the noise by more than 70%
5. a set of high-purity and high-titanium alloy horns can be used for continuous ultrasound for more than one hour
technical parameter:
main parameters | parameter range |
display method: | 4.3 inch tft touch screen display, optional 7 inch full touch screen |
display content: | time, power, temperature |
single ultrasound time: | 0.1-9.9s |
single gap time: | 0.1-9.9s |
timing: | 1 second-99 hours 59 minutes 59 seconds |
frequency: | automatic tracking |
power: | (1%-99%) adjustable |
crushing capacity | 0.5-800ml |
the alarm functions are: | temperature, time, overload, no load |
random horn: | φ6 |
optional horn: | φ2、3、10、15 |
duty cycle: | 0.1-99.9% |
power supply: | gap, continuous |
power box transducer weight: | (110v can be customized) |
power supply chassis size and net weight: | 14.3kg |
package size: | 420×280×220（mm）;12.2kg |
standard configuration: | 534×295×435mm |
features: | one host, one sealed transducer, one φ6 horn, one soundproof box |
